JIFETOR AC Flush Kit - Professional Car Air Conditioner System Cleaner with 220PSI Gauge, Air Fittings & Hose - Auto HVAC Pipe Line Cleaning Tool Set for DIY & Mechanics - Perfect for Home Garage & Auto Repair Shops

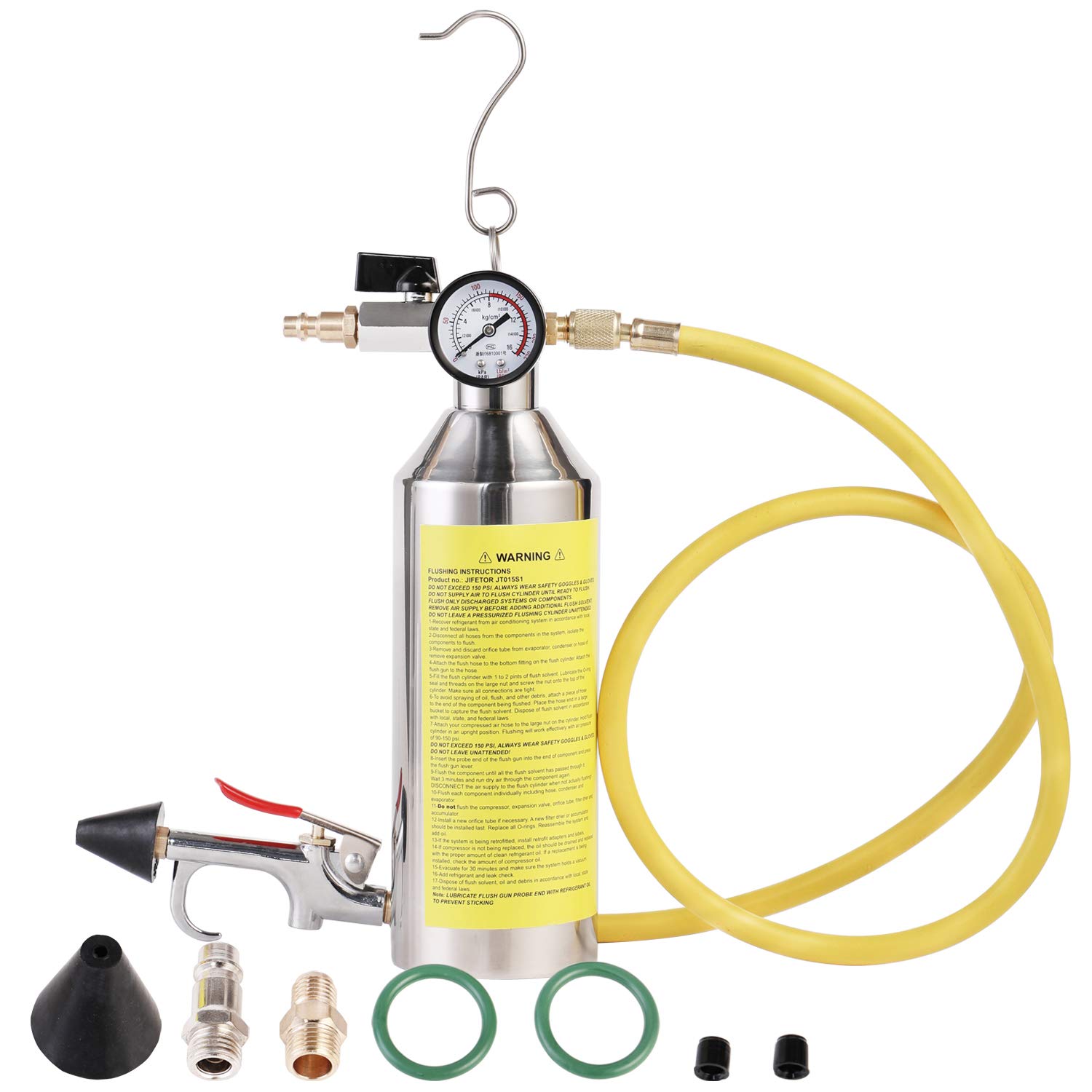

COMPLETE AIR CONDITIONER FLUSH TOOL SET 1x Empty Stainless Steel Canister with 1/4" NPT American Air Plug and 1/4" SAE Hose Adapter1x 3.5FT Hose with 1/4" Female Fittings and Flush Gun with Rubber Tapered Tip1x Spare Rubber Tapered Tip1x Spare 1/4" NPT European Air Plug Fittings1x Spare 1/4" SAE Brass Hose Adapter2x Spare Rubber O-rings in Cylinder Opening2x Spare Plastic Gasket in Hose Fittings Something you need but not included SPECIFIC AC flush solution Air compressor Air compressor hose STAINLESS STEEL CYLINDER 32oz one-piece molding stainless steel canister, equipped with metal 1/4" NPT American air plug, built-in ball valve, brass bottle cap with rubber o-ring, metal hang hook, siphon tube, brass 1/4" SAE hose adapter, 220PSI pressure gauge. The flush can uses shop air to pressurize and spray specific AC flush solvent. 3.5FT HOSE Rubber nylon resin material durable hose, 3.5FT long, max working pressure is 600PSI and burst pressure is upto 3000PSI, each side is loaded with 1/4" female brass fittings for easy connection. Special small holes design on resin layer double ensure explosion-proof features of hose. ALUMINUM FLUSH GUN Ergonomically designed flush gun body is made of aluminum, equipped with brass 1/4" SAE hose adapter, brass spray nozzle, rubber tapered tip. The rubber tapered tip can be sealed against pipe opening and prevent backspray of solution. If the pipe opening is smaller than the rubber tapered tip, you can try to take the tapered tip off and insert the brass spray nozzle into the pipe. SPARE PARTS 1 spare 1/4" NPT European air plug fittings for more choices. There are also some other spare parts in the AC flushing canister kit, in case you lose or damage these small part. WIDE USAGE OF JIFETOR AIR CONDITIONING CLEAN TOOL SET WHAT are flushed away? Old oil, refrigerant contaminants and residue, moisture, acid, dirt and something else. It depends on the solvent you're using. WHEN to use? When you replace or retrofit AC system, or there is odorous smell from air conditioning, or clean regularly refer to manufacturer's recommendation and the AC system situation. WHERE to flush? You can use this AC flush tool kit to deep flush each component individually including hose, condenser and evaporator. Do not flush the compressor, expansion valve, orifice tube, filter drier and accumulator. JIFETOR AC cleaning tool set also can be used to clean fuel pipe, and any other washable line such as household refrigerator air conditioner line. NOTE 1. Please wear gloves and goggles when use. 2. This AC flush kit should be used by professional or under the guidance of a professional. 3. Always refer to equipment manufacturer's operation instruction. 4. Please wash the cylinder before first use, ensure there is no debris inside. After use, please clean up the residual solvent from the flush tool kit, dry and properly preserve. 5. The hose and o-ring are made of rubber, please choose SPECIFIC AC flush solution and note your flush solution will not corrode rubber. 6. Tighten all the components, insert the rubber tapered tip into pipe opening and hold it, then flush. 7. Don't exceed 150PSI. 8. Disconnect air supply and release the air in the bottle before add new solution. 9. Do not leave a pressurized flushing bottle unattended 10. Dispose of flush solvent, oil and debris in accordance with local, state and federal laws. NOTE 1. Please wear gloves and goggles when use. 2. This AC flush kit should be used by professional or under the guidance of a professional. 3. Always refer to equipment manufacturer's operation instruction. 4. Please wash the cylinder before first use, ensure there is no debris inside. After use, please clean up the residual solvent from the flush tool kit, dry and properly preserve. 5. The hose and o-ring are made of rubber, please choose SPECIFIC AC flush solution and note your flush solution will not corrode rubber. 6. Tighten all the components, insert the rubber tapered tip into pipe opening and hold it, then flush. 7. Don't exceed 150PSI. 8. Disconnect air supply and release the air in the bottle before add new solution. 9. Do not leave a pressurized flushing bottle unattended 10. Dispose of flush solvent, oil and debris in accordance with local, state and federal laws.

Superior AC System Flush Tool This 1 liter empty flush canister is made of high quality stainless steel, sturdy and anti-corrosion. The tank body adopts integrated molding technology, which is very strong and pressure-resistant. The brass integrated cover is equipped with 1/4 inch American and European air plug with ball valve, brass outlet for connecting hose, pressure gauge(0-220 pounds per square inch) and hook

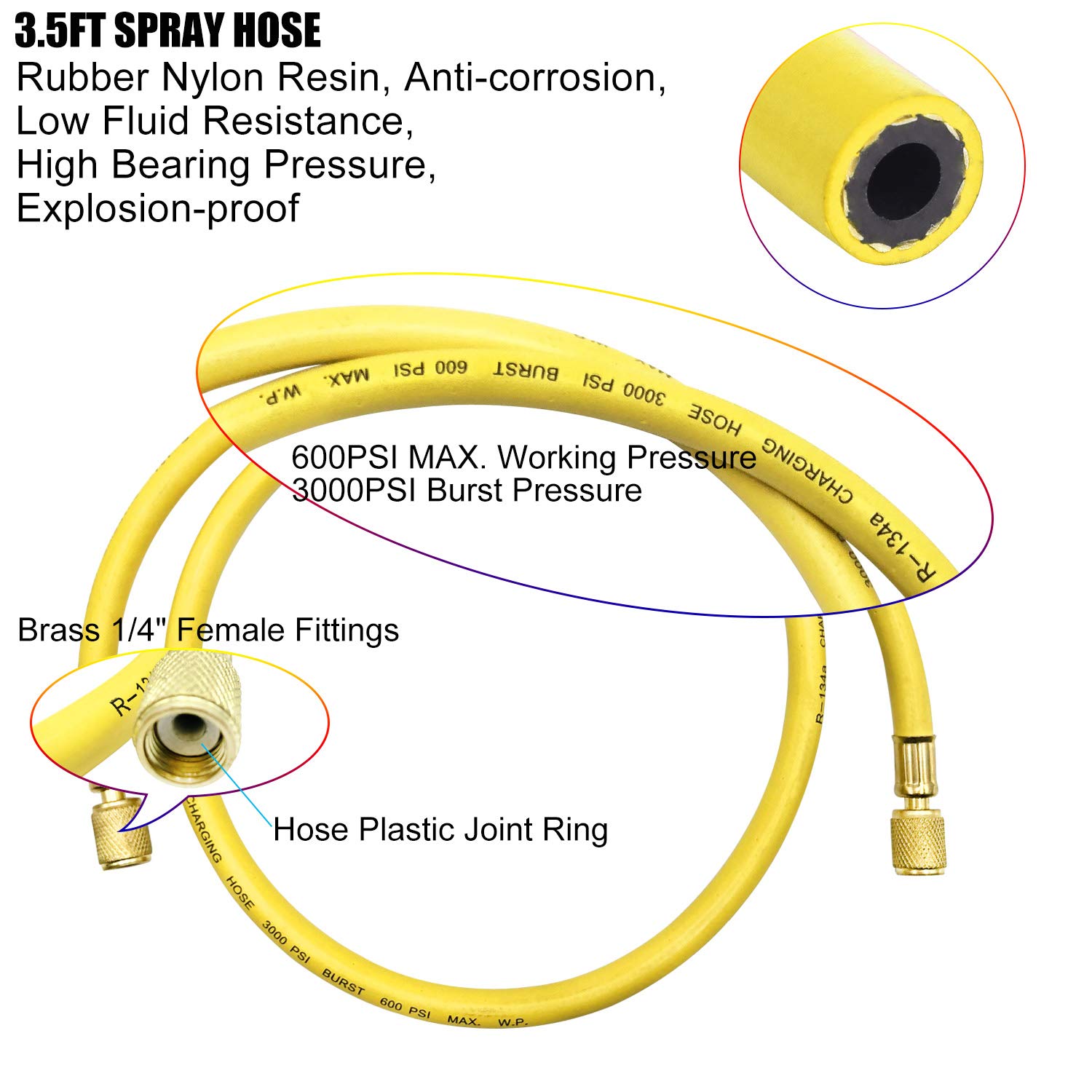

Excellent Hose and Spray Gun Rubber nylon resin material durable hose, 3-1/2 feet long, features with anti-corrosion, low fluid resistance and high bearing pressure, max working pressure is 600 pounds per square inch and burst pressure is upto 3000 pounds per square inch. Spray gun uses aluminium material with brass nozzle and rubber tappered tip. The fittings which will touch the flush solvent, all adopt brass and aluminum material, ensure the AC flushing kit can be used repeatedly

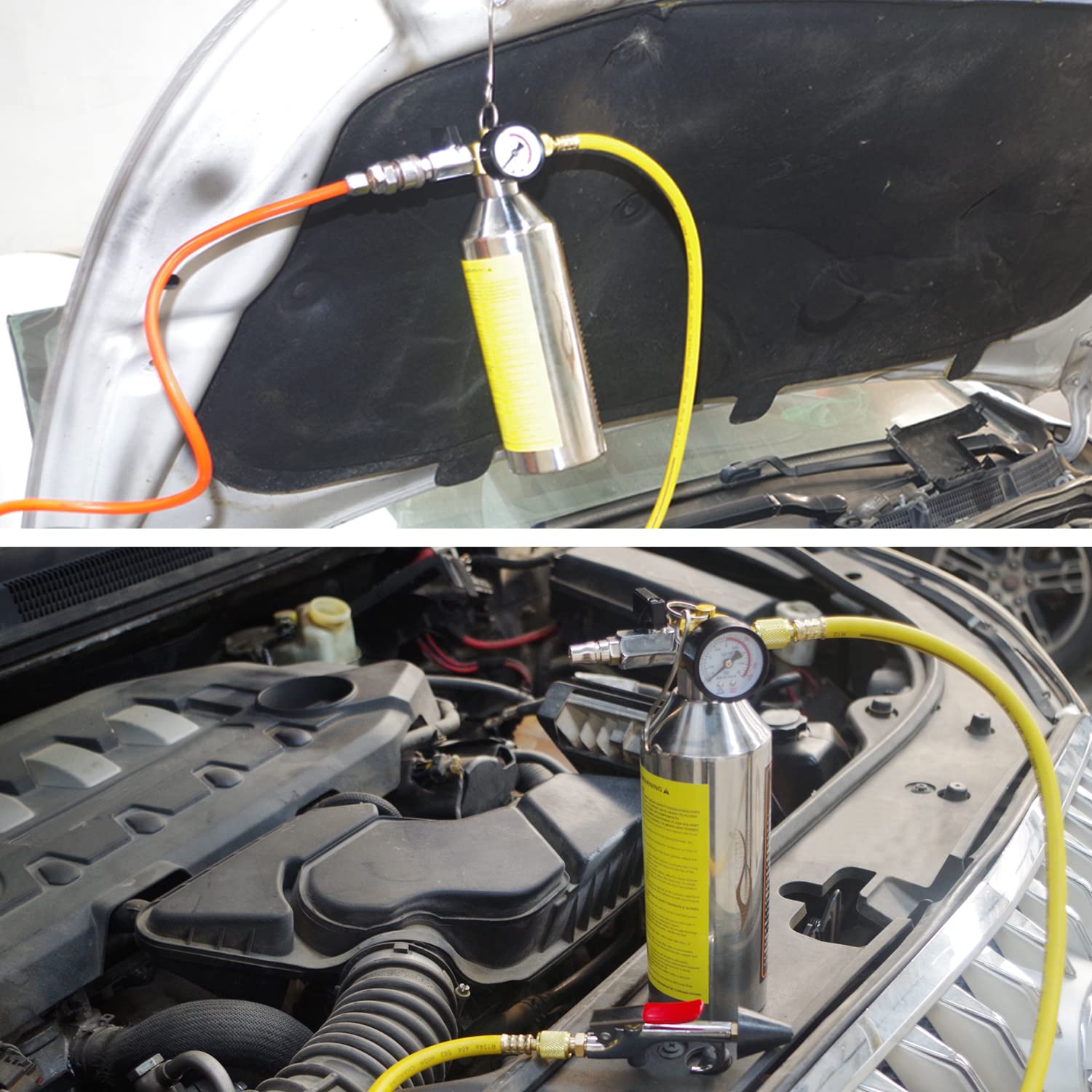

Wide Usage of JIFETOR Air Conditioner Flush Cylinder When replace or retrofit AC system, or there is odorous smell from air conditioning, you can use this AC cleaning tool kit to deep flush each component individually including hose, condenser and evaporator. Do not flush the compressor, expansion valve, orifice tube, filter drier and accumulator. JIFETOR flush bottle set also can be used to clean fuel pipe, and any other washable line such as household refrigerator air conditioner line

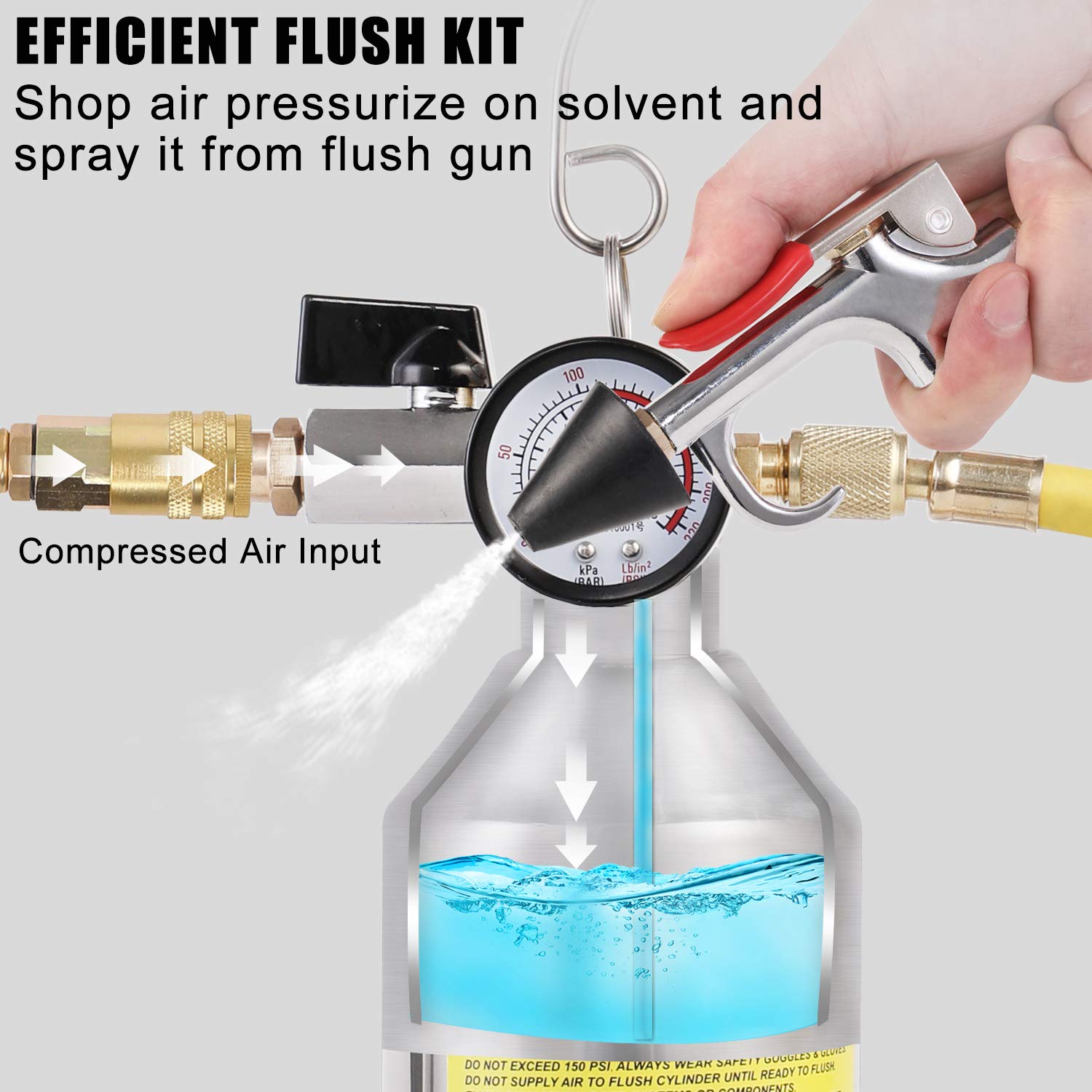

How It Works The air conditioning flush can, use shop air to pressurize and spray specific AC flush solvent, to flush old oil, refrigerant contaminants and residue, moisture, acid and dirt. The rubber tapered tip can be sealed against pipe opening and prevent backspray of solution. If the pipe opening is smaller than the rubber tapered tip, you can try to take the tapered tip off and insert the brass spray nozzle into the pipe

Operation Steps When replace or retrofit AC system, you need recover the old refrigerant, disassemble AC system components, fill the flush canister with lightweight solution, assemble flush kit components and tighten, insert the tapered tip into line then flush and blow, assemble AC system component, vacuum leak check and recharge. Pay attention to pressure gauge index when using, please do not exceed 150 pounds per square inch

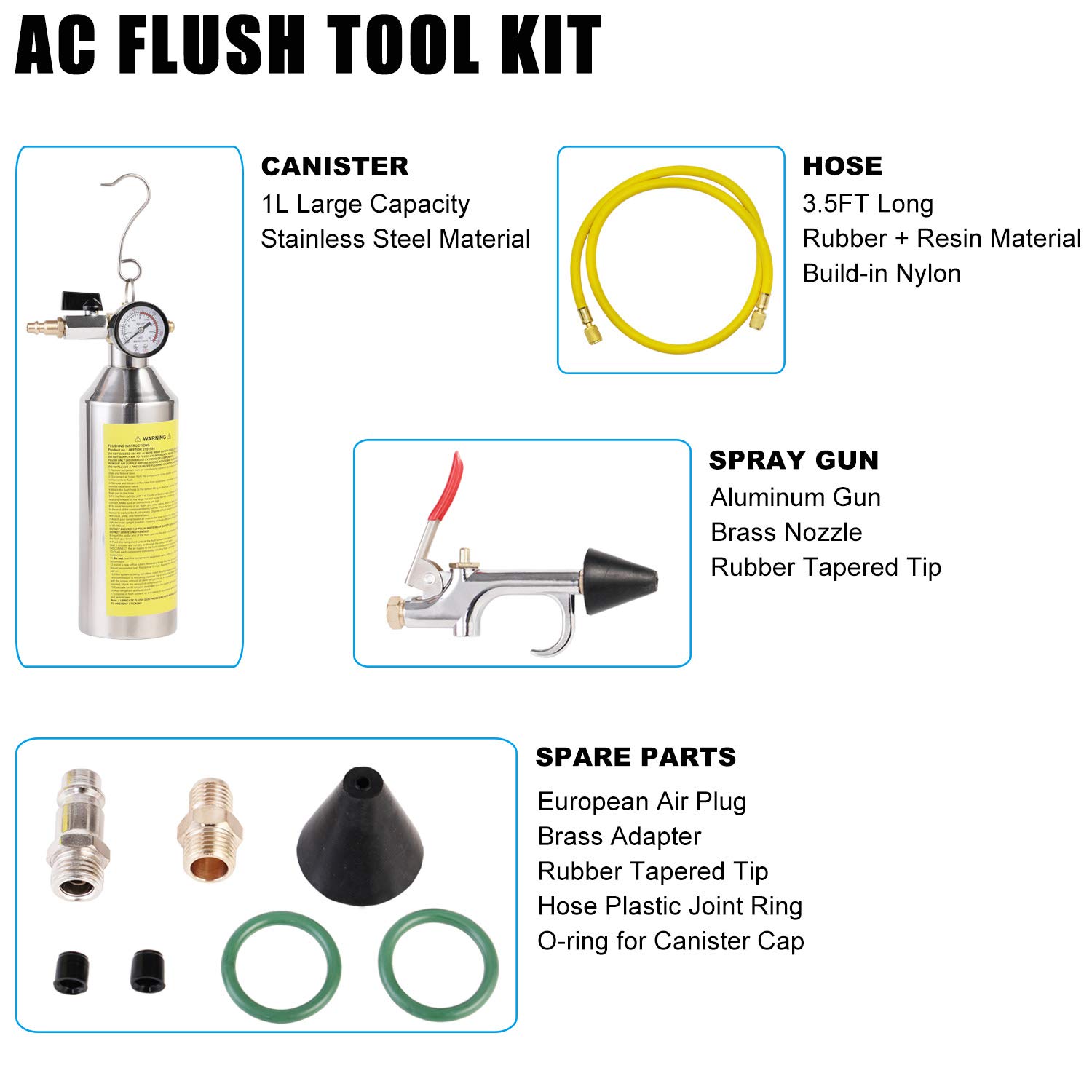

Packing List JIFETOR complete AC flush kit includes 1 empty cylinder, 1 3-1/2 feet hose with flush gun, and some spare fittings and o-rings. AC flush solution, air compressor and air hose are not included. The instructions in the package introduce the usage and precautions of the product in detail. There is a detailed instructions pasted on the bottle, please read it carefully before operation, and always refer to equipment manufacturer's operation instruction
